Overview

The objective of this article is to create an architecture with the following objectives:

  • High availability across global regions with multi-region AWS EKS architecture.
  • Automated deployment using Terraform for consistent, scalable infrastructure.
  • CI/CD pipeline for automated infrastructure deployment across AWS regions.

Architecture

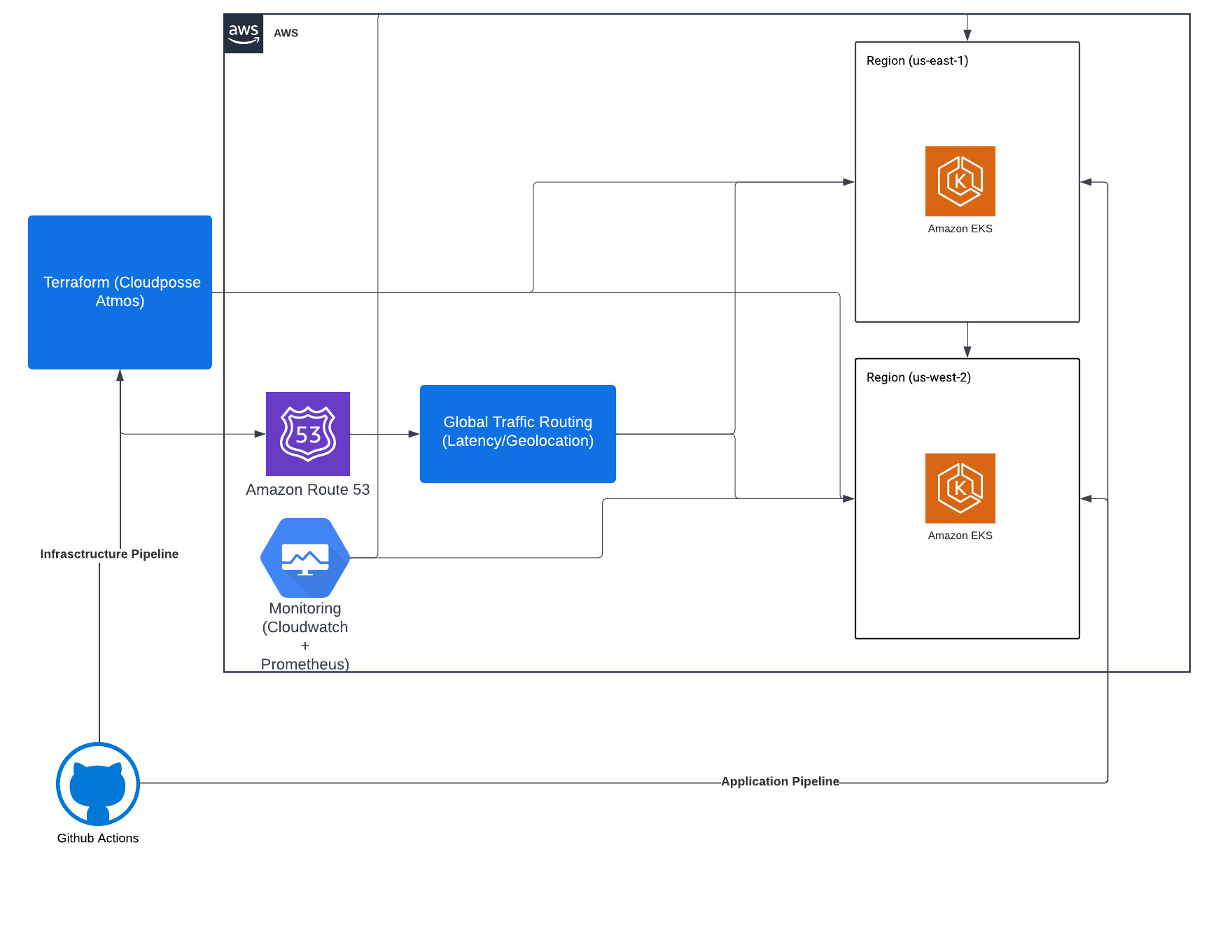

Architecture Diagram

IAC - Terraform with CloudPosse Atmos

How It Works

  1. Create an EKS Component: This component will contain the Terraform module for EKS. For this example, we’ll use terraform-aws-modules/eks/aws.

  2. Create main.tf with Parameters:

    • Create the file in the directory components/terraform/eks.
    • Define the EKS module:
   module "eks_cluster" {
     source  = "terraform-aws-modules/eks/aws"
     version = "~> 19.0"

     # Cluster configuration
     cluster_name    = var.cluster_name
     cluster_version = var.cluster_version
     # ……
   }
  1. Create bastion.tf to create bastion hosts to access the cluster
   module "ec2_bastion" {
    for_each = local.public_subnet_ids
    source = "cloudposse/ec2-bastion-server/aws"

    enabled = module.this.enabled

    instance_type               = var.instance_type
    security_groups             = compact(concat([module.vpc.outputs.vpc_default_security_group_id], var.security_groups))
    subnets                     = each.value
    key_name                    = var.key_name
    user_data                   = var.user_data
    vpc_id                      = local.vpc_id
    associate_public_ip_address = var.associate_public_ip_address

    context = module.this.context
   }
  1. Create remote-state.tf to import the VPC deployed through the VPC component
   module "vpc" {
       source = "cloudposse/stack-config/yaml//modules/remote-state"
       version = "1.5.0"
       component = var.vpc_component_name
       atmos_base_path = "../../../"
       context = module.this.context
   }

  1. Create variables.tf, outputs.tf according to the Terraform modules

  2. Create a directory stacks/catalog/eks (catalog calls all the AWS service components)

  3. Create a defaults.yaml inside the above directory, and call default values for the EKS service

   components:
     terraform:
       eks:
       metadata:
           type: abstract
           component: eks
       vars:
           cluster_version: "1.30"
           eks_managed_node_groups:
             on_demand:
               instance_type: "t3.medium"
               desired_capacity: 3
               max_capacity: 6
               min_capacity: 3
               key_name: "eks-cluster-key"
               node_group_name_prefix: "on-demand"
               additional_tags:
                 on-demand: "true"
               taints:
               - key: "workload-type"
                 value: "frontend"
                 effect: "NoSchedule"

             spot:
               instance_type: "t3.medium"
               desired_capacity: 3
               max_capacity: 6
               min_capacity: 3
               key_name: "eks-cluster-key"
               node_group_name_prefix: "spot"
               spot_price: "0.05"
               additional_tags:
                 spot: "true"
               taints:
               - key: "workload-type"
                   value: "backend"
                   effect: "NoSchedule"

           fargate_profiles:
             backend:
               selectors:
               - namespace: "backend-services"
           key_name: "eks-cluster-key"
           associate_public_ip_address: true
  1. Create <env>.yaml, for example, qa.yaml, which creates the EKS cluster, with on-demand, spot, and Fargate nodes, with proper taints:
   import:
     - catalog/eks/defaults
   components:
     terraform:
       eks_cluster_qa:
       metadata:
           component: eks
       vars:
           environment: "qa"
           vpc_component_name: "vpc-eks"
           cluster_name: "qa-cluster"
  1. Create stacks/mixins/region/us-east-1.yaml and stacks/mixins/region/us-west-1.yaml and declare default values for the region, for example:
   vars:
     region: us-east-1
     environment: ue1
  1. **Create stacks/orgs/<your_org_name>/<bu>/qa/us-east-1.yaml and `stacks/orgs///qa/us-west-1.yaml**
    import:
    - catalog/vpc/qa
    - catalog/eks/qa

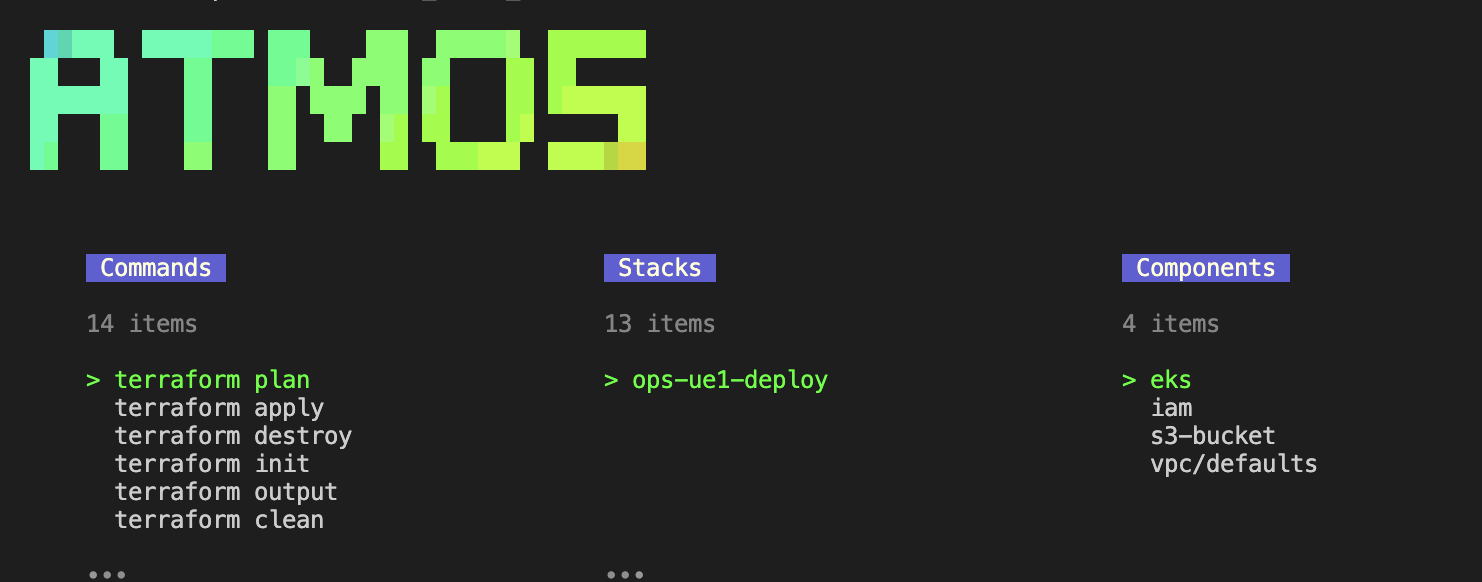

  1. Now it should be visible from atmos CLI

    Example

  2. Run the plan for each region, for this example us-east-1 and us-west-1

  3. For apply, I would recommend using GitHub Actions

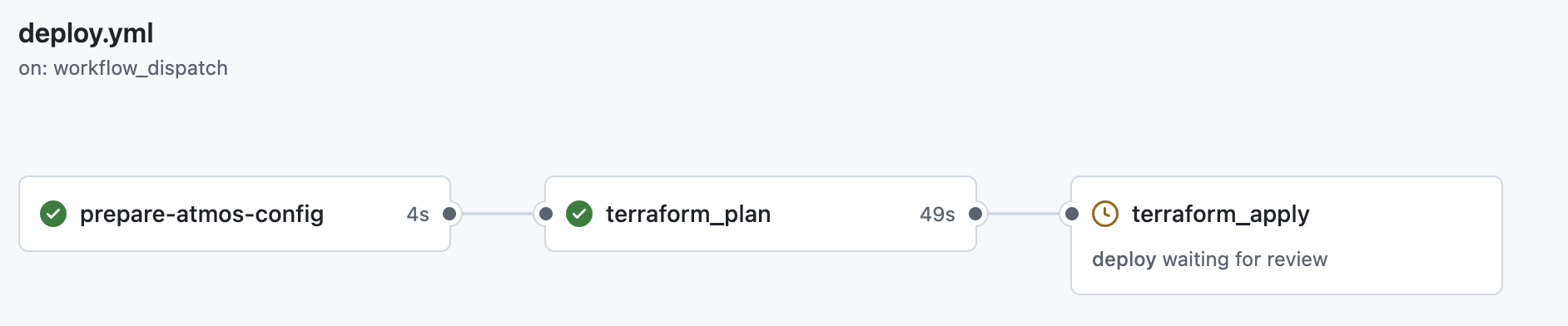

    GitHub Actions run

    A sample workflow:

      - name: Plan Atmos Component
        uses: cloudposse/github-action-atmos-terraform-plan@v2
        with:
          component: $
          stack: $
          debug: true
          atmos-config-path: /home/runner/work/_temp/atmos-config
          atmos-version: $
        .....
      - name: Terraform Apply
        uses: cloudposse/github-action-atmos-terraform-apply@v2
        with:
          component: $
          stack: $
          atmos-config-path: /home/runner/work/_temp/atmos-config
          atmos-version: $

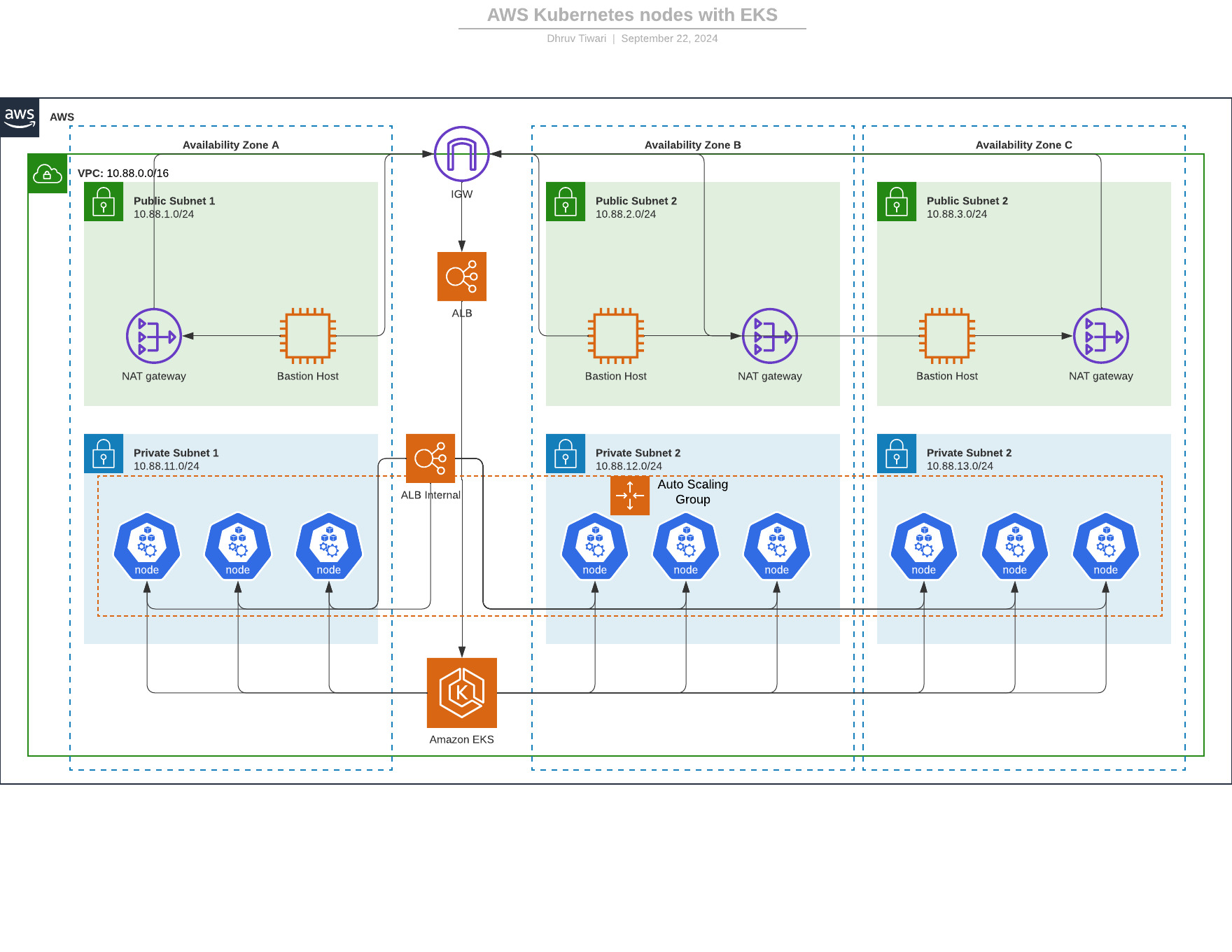

EKS Cluster Architecture

EKS Cluster Architecture

1. Overall Architecture

  • This architecture diagram represents a highly available and fault-tolerant AWS environment for running Kubernetes nodes using Amazon EKS (Elastic Kubernetes Service).
  • The architecture spans three Availability Zones (AZs) to ensure resilience and redundancy in case of failure.

2. VPC Configuration

  • The infrastructure operates inside a Virtual Private Cloud (VPC) with a CIDR block of 10.88.0.0/16.
  • The VPC is divided into public subnets and private subnets across three availability zones (AZ A, AZ B, and AZ C).

3. Public Subnets

  • Each availability zone contains a Public Subnet:
    • AZ A: 10.88.1.0/24
    • AZ B: 10.88.2.0/24
    • AZ C: 10.88.3.0/24
  • Resources hosted in these public subnets include:
    • NAT Gateways: Used to allow instances in private subnets to securely access the internet without exposing them directly.
    • Bastion Hosts: Provide secure SSH access to instances in private subnets, accessible only via trusted IP addresses.
    • External ALB: Routes traffic from the internet to services hosted in private subnets.

4. Private Subnets

  • Each availability zone contains Private Subnets:
    • AZ A: 10.88.11.0/24
    • AZ B: 10.88.12.0/24
    • AZ C: 10.88.13.0/24
  • These private subnets host resources such as:
    • Amazon EKS Worker Nodes: Containers running Kubernetes workloads.
    • Internal ALB: Facilitates routing between internal services.
    • Auto Scaling Group: Automatically manages the scaling of EKS worker nodes.

5. Elastic Load Balancer (ALB)

  • Two types of load balancers are used in this architecture:
    • External ALB: Exposed to the internet via the Internet Gateway (IGW), it distributes incoming traffic across EKS worker nodes in private subnets.
    • Internal ALB: Resides in the private subnets and routes traffic between internal services and EKS worker nodes. It is not exposed to the internet.

6. Internet Gateway (IGW)

  • The Internet Gateway (IGW) allows public subnets to communicate with the internet, providing inbound and outbound internet access for the external ALB, NAT gateways, and bastion hosts.

7. NAT Gateway

  • NAT Gateways are deployed in each public subnet to provide outbound internet access for instances in private subnets.
  • EKS nodes in private subnets can connect to the internet to pull Docker images or access other external resources without being directly exposed.

8. VPC Endpoints for S3 and DynamoDB (Optional)

  • VPC Gateway Endpoints allow instances in private subnets to securely access Amazon S3 and Amazon DynamoDB without going through the internet or NAT Gateway, improving security and reducing costs.
    • S3 Endpoint: Enables internal access to S3 buckets for object storage.
    • DynamoDB Endpoint: Enables direct access to DynamoDB tables from private subnets.

9. Stateful Resources (Amazon S3 and DynamoDB)

  • Amazon S3:
    • Provides scalable, durable, and highly available object storage. S3 buckets can be accessed from the private subnets via VPC Gateway Endpoints.
    • Cross-Region Replication (CRR) is enabled for disaster recovery, replicating data to a different AWS region.
  • Amazon DynamoDB:
    • A fully managed, highly available NoSQL database. DynamoDB tables can be accessed from private subnets through DynamoDB VPC Gateway Endpoints.
    • Global Tables are enabled to provide multi-region replication, ensuring low-latency access and high availability across different regions.

10. Security Considerations

  • Bastion Hosts: Only accessible through sessions manager
  • Security Groups: Applied to EKS nodes, ALBs, and NAT gateways to control both inbound and outbound traffic based on the principle of least privilege.
  • VPC Endpoints: Improve security by enabling private access to S3 and DynamoDB without using the public internet.

11. Traffic Flow:

  • External Traffic (Public):
    • Internet -> IGW -> External ALB -> EKS Nodes (Private Subnets).
  • Internal Traffic (Private):
    • Internal Service -> Internal ALB -> EKS Nodes (Private Subnets).
  • Outbound Internet Traffic (from Private Subnets):
    • EKS Nodes (Private Subnets) -> NAT Gateway -> Internet.
  • S3 and DynamoDB Access (via VPC Endpoints):
    • EKS Nodes (Private Subnets) -> VPC Gateway Endpoints -> S3/DynamoDB.

12. Route Tables

  • Public Subnets: Route to Internet Gateway (IGW) for public-facing traffic.
  • Private Subnets: Route through NAT Gateway for outbound internet access.
  • VPC Endpoints: Optional entries for direct access to S3 and DynamoDB without NAT Gateway.

13. High Availability and Fault Tolerance

  • The architecture is spread across three Availability Zones (AZs) to ensure high availability.
  • Critical services like NAT Gateways, ALBs, and EKS worker nodes are distributed across all AZs to prevent single points of failure.
  • Auto Scaling ensures that the number of worker nodes scales based on demand.

Blue-Green Deployment with ArgoCD

Assuming that argocd has already been deployed to eks, either through manifests or through terraform

Steps

  1. Create Two Environments: Deploy two versions of the application (blue and green) using separate namespaces or ArgoCD Applications.
  2. Deploy the Green Environment: Deploy the new version (green) without affecting the blue version.
  3. Switch Traffic to Green: Use an Ingress Controller or update the Service object to switch traffic to the green environment. ArgoCD can handle this update.
  4. Test the Green Version: Ensure that the new (green) version is working correctly before fully switching traffic.
  5. Rollback to Blue if Needed: If the green environment has issues, rollback by switching traffic back to the blue environment.

Monitoring and Observability

Monitoring Tools:

  • Amazon CloudWatch: Use CloudWatch to monitor EKS cluster metrics, such as CPU/Memory usage, and set up alerts based on thresholds.
   module "eks_cluster" {
     source  = "terraform-aws-modules/eks/aws"
     version = "~> 19.0"

     # Cluster log configuration
     cluster_enabled_log_types = ["api", "audit", "authenticator", "controllerManager", "scheduler"]
     # ……
   }
  • Prometheus and Grafana: Install Prometheus in the EKS cluster to collect metrics from Kubernetes resources and applications.
    module "prometheus" {
      source  = "terraform-aws-modules/managed-service-prometheus/aws"
      version = "v3.0.0"

      workspace_alisas = "qa"
    }

    module "grafana" {
      source  = "terraform-aws-modules/managed-service-grafana/aws"
      version = "v2.2.0"

      name   = var.name
      region = var.region

      permission_type  = "SERVICE_MANAGED"
      notification_destinations = ["SNS"]

      data_sources = ["CLOUDWATCH", "PROMETHEUS"]
    }

Cost and Cost Optimization

Costs Involved

  1. EKS Clusters: Charged for the control plane and worker nodes (EC2 instances).
  2. Load Balancers: Costs for handling incoming traffic.
  3. Route 53: Charged for DNS queries and health checks.
  4. S3, DynamoDB: Storage costs for state files (if using Terraform backend).
  5. NAT Gateways: Charged by data processing and usage.

Cost Optimization Strategies

  1. Spot Instances: Use spot instances for worker nodes to save up to 90% of EC2 costs.
  2. Auto Scaling: Ensure efficient scaling of EKS worker nodes based on traffic.
  3. Rightsize Resources: Optimize instance types and sizes for both nodes and bastion hosts.
  4. Reserved Instances/Savings Plans: For long-running workloads, commit to reserved instances or savings plans for significant cost savings.
  5. Use Fargate for Small Workloads: Instead of managing EC2 instances, use AWS Fargate for small workloads with lower traffic to avoid overhead costs.
